Complete Flour Mill Units 6FD-35/6FD-40/6FD-50

Item Code:6FD-35/6FD-40/6FD-50 Features:
  • Description

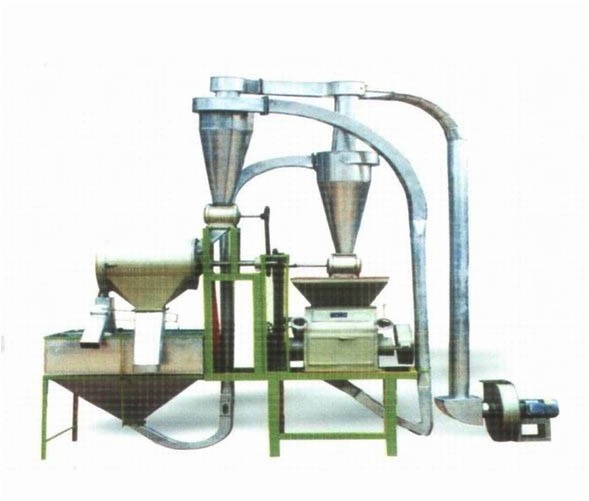

 The 6FD series of complete flour mill units are designed on the base of the original 6FY series of flour mills by adding air elevators. The units have the following advantages: 1.Feeding wheat grain, collecting flour and collecting the bran are all carried on over the ground, so it is very convenient for the four milling operation.  2. Raise the flour mill's mechanization degree, cut down operator's labor intensity.3. Adopt compressed air to transport grain. For seal pipes  strictly, thus prevent flour from releasing efficiently, cut down powder's pollution greatly.4. Lower the finished production's temperature and mill grain again and again, thus improve the flour's quality greatly. 5. We can use it to mill wheat, sorghum, coffee, cocoa and other grains, also to mill chemical particulate materials.

Specifications:



Model

6FD-35

6FD-40

6FD-50

Output(KG/H)

300-400

350-450

450-500

Power(KW)

7.5

11

11-15

Speed(RPM)

Fast roller 770

Feed roller 135

Speed ratio of fast roller to slow roller

2.5:1

Specification of roller(MM)

φ220×350

φ220×400

φ220×500

Overall dimension(MM)

3100×1500×3300

Packing dimension(MM)

2350×920×2000

N.W./G.W.(KG)

800/870(no main motor)

820/890(no main motor)

860/940(no main motor)
