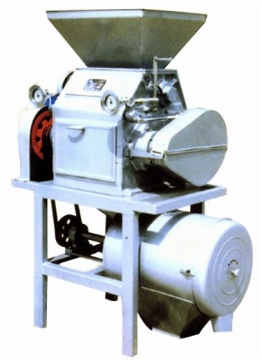

Roller Flour Mill 6FY-35/6FY-40/6FY-50

Select All

Item Code:6FY-35/6FY-40/6FY-50 Features:

Description

6FY Crushing Machine

6FY crushing machine is a kind of new machine designed on the basis of 6FY flour roller mills and adopts advanced technology and many years’ experiences. So the machine has more reasonable construction and more convenient operation. It can pressure many kinds of grains into fine flake or particulate matter such as wheat, malt, soya bean, coffee bean and so on. So it is wide spread used in food industry, chemical industry, wine-making industry, beer factory, medicine manufacturer and monosodium glutamate industry.

Model	6FY-20C	6FY-35C	6FY-40C	6FY-50C
Output(KG/H)	3KW 400-500	5.5KW 700-900	11KW 1000-1200	11KW 1500-1700
Output(KG/H)	5.5KW 500-600	7.5KW 900-1050	15KW 1300-1600	15KW 1800-2000
Speed(RPM)	Fast roller 800	Fast roller 770	Fast roller 770	Fast roller 770
Speed(RPM)	No feed roller	Feed roller 135	Feed roller 135	Feed roller 135
Speed ratio of fast roller to slow roller	1.78:1	2.5:1	2.5:1	2.5:1
Specification of roller(MM)	φ180×200	φ220×350	φ220×400	φ220×500
Packing dimension(MM)	Total Packing:760×630×960	Head:910×670×830	Head:1050×670×850	Head:1120×670×850
Packing dimension(MM)	Total Packing:760×630×960	Box:1160×640×785	Box:1300×670×785	Box:1300×670×785
N.W./G.W.(KG)	135/150(no motor)	490/560(no motor)	510/580(no motor)	550/630(no motor)
